Single Modem series

Models: NXS-9700-3G, NXS-9700-4G, NXS-9700-5G

Dual Modem

Single Modem is a base series that can send/receive SMS with throughput of max. 30 SMS/min. Ideal choice for communication in environments where the number of messages is low to moderate. The device can be connected in a device failover cluster for highest reliability and availability.

MODEMS: 1
THROUGHPUT: MAX. 30SMS/MIN

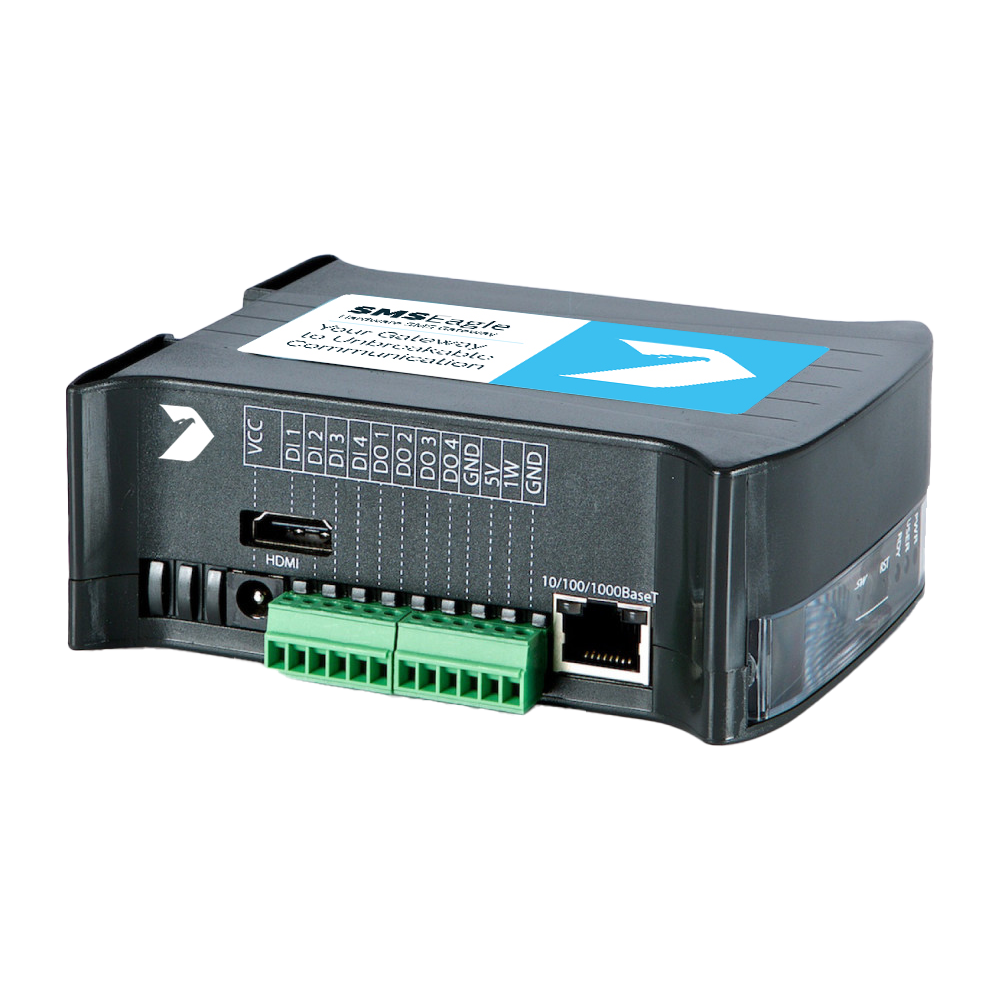

CONNECTORS: ETHERNET, ANTENNA, 4xDIGITAL INPUT, 4xDIGITAL OUTPUT, TEMP. SENSOR

FEATURES

  • Sending & Receiving SMS (managing messages with Inbox, Outbox, Sent Items)
  • Sending & Receiving MMS messages
  • Sending to single users or groups of users
  • Sending SMS at specified date and time (SMS scheduling)
  • Limit sending to specified hours (for example between 08:00-18:00)
  • Smartphone-like conversation mode (messages are nicely grouped by phone number). You can easily track history of what you send and receive to each user
  • Support of different message types (normal SMS/multipart SMS/flash SMS//MMS/binary SMS/USSD-code/WAP Push link)
  • Message templates
  • Phonebook (single users, groups)
  • Import of contacts from CSV file
  • Monitoring services (eg Web server, Mail server), SMS alerting and SNMP Traps
  • Auto-reply to incoming SMS
  • Email to SMS forwarding
  • SMS to Email forwarding
  • Subscriptions – allows newsletter-style subscriptions via SMS
  • Voice Calls (wake-up calls and text-to-speech calls) – available with VOICE add-on
  • Periodic SMS to send SMS messages at a desired time interval
  • Shift management to assign Phonebook contacts to working shifts
  • Forward incoming SMS to remote script (callback URL)
  • Blacklist feature to exclude numbers
  • Outlook Plugin to send SMS directly from the app
  • Digital input and output controlled via SMS
  • Multi-Factor Authentication (MFA)
  • Message Escalation feature
  • LDAP support
  • Backup to FTP
  • Periodic folders cleanup
  • Automatic backup to FTP
  • Temperature & humidity SMS alerts
  • Multiuser support (each user has access to a private Inbox, Outbox, Sent Items)
  • Unicode support (support of national characters)
  • Multipart SMS message support
  • API for sending SMS from external applications & systems
  • Multilanguage (English, French, German, Polish, Spanish) web-interface
  • NTP client installed
  • SNMP agent installed
  • Built-in Apache2 web server
  • Built-in PostgreSQL database server
  • Built-in Postfix email server
  • Modern responsive interface
  • HTTPS support
  • Support for delivery reports
  • Watchdog mechanisms for 4G/5G modem (automatic modem health control)
  • Failover support (HA cluster of 2 devices possible)
  • Support of external temperature sensors

TECHNICAL DETAILS

Choose a device model for a full hardware specification

Model NXS-9700-5G

CPU
ARM A72 1.5GHz (quad core)
Internal Storage
16GB eMMC storage
RAM
2GB LPDDR4
Wavebands/RF Bands
5G NR NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 4G: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 3G: UMTS B1/B2/B3/B4/B5/B6/B8/B19
Modem Type
5G
Region
Global
Num. of modems
1
Throughput (maximum)
30 SMS/min Sending/Receiving
SIM Card Standard
mini
Antenna
2x Omnidirectional 2.5dBi MIMO Magnetic/Adhesive mount Cable
Antenna Connector
SMA
Network Interface
Ethernet 10/100/1000 TX
Other Interfaces
1x HDMI, 2x USB, 4xDI, 4x DO, 1x 1 Wire
Power supply
AC/DC Adapter: Voltage ranges: 100–240 V AC, Frequency: 50–60Hz
Alternative: PoE+
Casing
ABS, DIN rail installation (rack mount possible via DIN-rack adapter)
Linux Kernel
6.1x
Device Failover: (HA-cluster compatibility)
Yes
Modem Failover
No
Multi-Modem Strategy
No
Certifications
CE, FCC, IC, GCF (for RF-module), PTCRB (for RF-module), RCM (for RF-module)

Model NXS-9700-4G

CPU
ARM A72 1.5GHz (quad core)
Internal Storage
16GB eMMC storage
RAM
2GB LPDDR4
Wavebands/RF Bands
4G RF Bands: • LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 • LTE-TDD: B38, B39, B40, B41 • WCDMA: B1, B2, B4, B5, B6, B8, B19 • Optional GSM: B2, B3, B5, B8
Modem Type
4G
Region
Global
Num. of modems
1
Throughput (maximum)
30 SMS/min Sending/Receiving
SIM Card Standard
mini
Antenna
Omnidirectional 2dBi antenna with magnetic foot
Antenna Connector
SMA
Network Interface
Ethernet 10/100/1000 TX
Other Interfaces
1x HDMI, 2x USB, 4xDI, 4x DO, 1x 1 Wire
Power supply
AC/DC Adapter: Voltage ranges: 100–240 V AC, Frequency: 50–60Hz
Alternative: PoE+
Casing
ABS, DIN rail installation (rack mount possible via DIN-rack adapter)
Linux Kernel
6.1x
Device Failover: (HA-cluster compatibility)
Yes
Modem Failover
No
Multi-Modem Strategy
No
Certifications
CE, FCC, ISED, RoHS, UKCA, PTCRB, TDRA, RCM, GCF (for RF-module). Operator approvals: AT&T, Verizon

Model NXS-9700-3G

CPU
ARM A53 1.2GHz (quad-core)
Internal Storage
4GB eMMC storage
RAM
1GB DDR2
Wavebands/RF Bands
3G Wavebands: UMTS 800/850/900/AWS/1900/2100 MHz, GSM/GPRS 850/900/1800/1900 MHz
Modem Type
3G
Region
Global
Num. of modems
1
Throughput (maximum)
30 SMS/min Sending/Receiving
SIM Card Standard
mini
Antenna
Omnidirectional 2dBi antenna with magnetic foot
Antenna Connector
SMA
Network Interface
Ethernet 10/100/1000 TX
Other Interfaces
1x HDMI, 2x USB, 4xDI, 4x DO, 1x 1 Wire
Power supply
Voltage ranges: 100–240 V AC Frequency: 50–60Hz
Casing
ABS, DIN rail installation (rack mount possible via DIN-rack adapter)
Linux Kernel
4.14
Device Failover: (HA-cluster compatibility)
Yes
Modem Failover
No
Multi-Modem Strategy
No
Certifications
CE, FCC, IC, RoHS, UKCA, GCF (for RF-module), PTCRB (for RF-module), RCM (for RF-module)

DOWNLOADS

User’s Manual NXS-9700 (pdf file) – for software version 5.00
Download PDF

Technical datasheet NXS-9700-5G Rev. 4
Download PDF

Technical datasheet NXS-9700-4G Rev. 4
Download PDF

Technical datasheet NXS-9700-3G Rev. 4
Download PDF

ORDERING

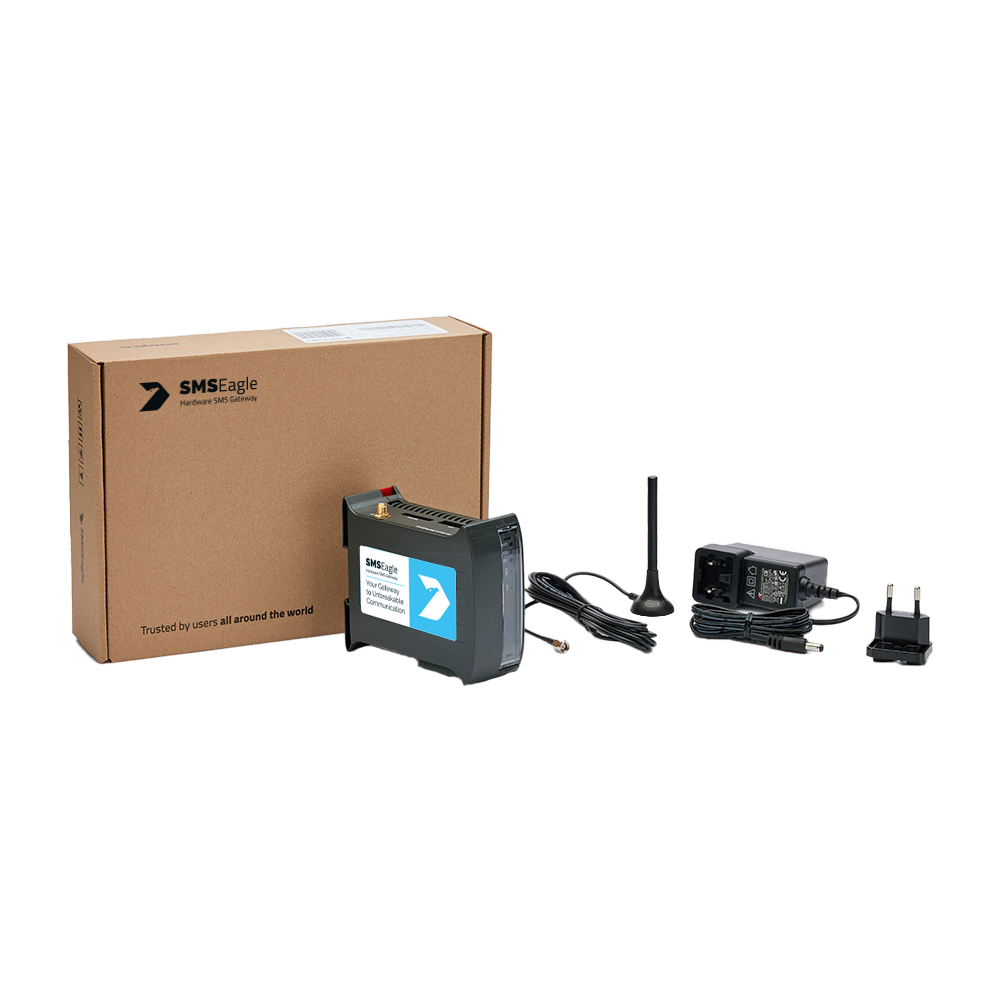

SMSEagle package includes

  • SMSEagle hardware SMS gateway
  • External omnidirectional antenna (with magnetic foot) – 3G/4G device
  • 2x External MIMO antennas (with magnetic/adhesive foot) – 5G device
  • AC/DC Adapter (input voltage: 100-240V)
  • Quick-start guide
  • 24-month warranty & support (optional warranty extension available)
  • Access to free software upgrades within the warranty period

Order codes

Model NameTechnologyProduct Code
NXS-9700-5G Rev.45G (with fallback to 4G, 3G,)SMSEagleNXS97005GREV4
NXS-9700-4G Rev.44G (with fallback to 3G, 2G)SMSEagleNXS97004GREV4
NXS-9700-3G Rev.33G (with fallback to 2G)SMSEagleNXS9700



Available plug types: EU/US/UK/AU should be specified during order.
