Send SMS alerts from Shuffle

Shuffle alerts reach the person on duty as an SMS. SMSEagle sends them over its own cellular connection, so they don’t depend on internet access or a cloud service.

A ready SMSEagle app in Shuffle

You activate the SMSEagle app in Shuffle and enter the device address and API key, with no code to write.

SMS as a step in any workflow

You add the SMSEagle app as a step in a Shuffle workflow, so an SMS goes out at exactly the point you choose.

No cloud SMS provider

SMSEagle sends alerts through its own SIM card straight to the mobile network, with no cloud SMS provider in between.

How it works

1

Activate the app

In Shuffle, open the Apps page, search for SMSEagle, and click Activate to add it to your library.

2

Connect it in a workflow

Add the SMSEagle app to a workflow and fill in the Apikey field with your access token and the Url field with your device’s address.

3

Runs as any other action

SMSEagle delivers the alert over its own cellular connection, not through a third-party service, as an SMS to the recipient’s phone.

Set up in about 10 minutes

No custom API node to configure. With SMSEagle’s pre-built app already in the Shuffle library, a workflow can be sending SMS alerts in 10-15 minutes, using nothing but an access token and your device’s URL.

SMSEagle sends Shuffle alerts to the right person by SMS, day and night.

No per-message fees

SMSEagle sends SMS through a regular SIM card, so you only pay for your mobile plan.

Alerts keep going if one carrier fails

On devices with two SIM cards from different operators, SMSEagle switches to the second one when the first operator’s network is down.

Alerts keep working even if one device fails

Two SMSEagle devices can work as an HA cluster: if one fails, the other takes over sending.

SMSEagle configuration

  1. Create a new user in SMSEagle (menu System > Users, user access level: “User”).
  2. Grant API access to the created user:
    • go to Settings > Global settings > API and open the API v2 page
    • click Create API key, fill in Key name and select the user created above as Owner
    • Add access permissions in section Messages for: Send SMS
    • Add access permissions in section Calls for: Make a ring call, Make a TTS Advanced call (for voice alerting)
    • click Create key. The access token is shown only once, right after saving

Shuffle configuration

  1. Log in and go to page: https://shuffler.io/apps

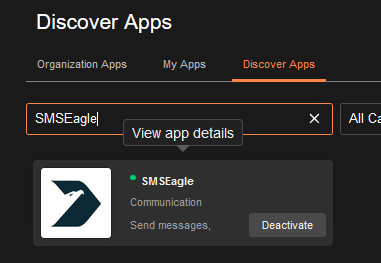

  2. Search for SMSEagle and click Activate

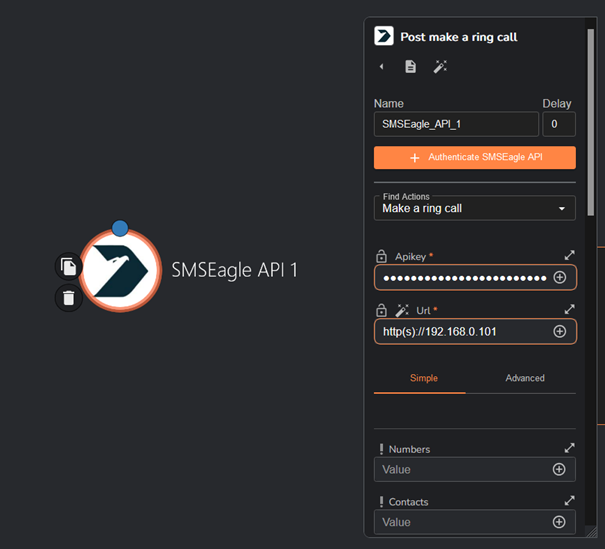

3. Now go to your workflow, there you can connect the SMSEagle app to send chosen API requests.

  • enter the access token in the Apikey field
  • enter a valid SMSEagle device URL in the Url field.

That’s it 🙂



Additional Shuffle documentation can be found here: https://shuffler.io/apis/978e5b4cb3f8af543aec5d08c45c67dd
