4. Configure E-mail recipients (System -> Users and roles -> User Management -> User data). Settings as at picture:
where :
- 123456789 is your cellphone number
- 192.168.1.100 is your SMSEagle’s IP address
Sauter moduWeb Unity alerts reach the person on duty as an SMS or a phone call. SMSEagle sends them over its own cellular connection, so they don’t depend on internet access or a cloud service.

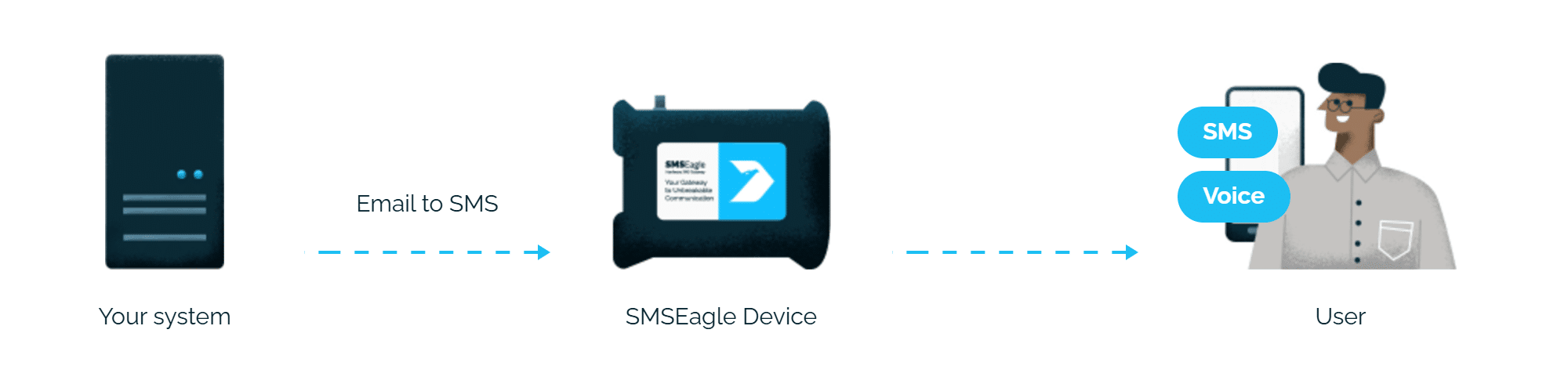

moduWeb Unity sends its usual alarm email to PHONE_NUMBER@SMSEagle_address, and SMSEagle turns it into an SMS.
SMSEagle sends alerts through its own SIM card straight to the mobile network, so they don’t depend on internet access or a cloud SMS provider.
SMSEagle sends SMS through a regular SIM card, so you only pay for your mobile plan.
Under System > Network Settings > Email service settings, set the outgoing e-mail server, port, and sender address (or use SMSEagle as the SMTP server).
Under System > Users and roles > User Management > User data, set the recipient email to PHONE_NUMBER@SMSEAGLE_IP.
SMSEagle delivers the alert over its own cellular connection, not through a third-party service, as an SMS or a phone call to the recipient’s phone.
Setting up SMSEagle with moduWeb Unity takes just a few minutes – configure the SMTP settings once, set each recipient’s email to their phone number, and alarms start arriving as SMS and voice calls immediately.
After the SMS with a moduWeb Unity alert, SMSEagle can also call: a ring-only call or a call that reads the alert aloud. You set it once in the Email to SMS rule.
Escalation groups and shift schedules make sure the moduWeb Unity alert reaches the person on duty, and the next person on the list if nobody responds.
Two SMSEagle devices can work as an HA cluster: if one fails, the other takes over sending.

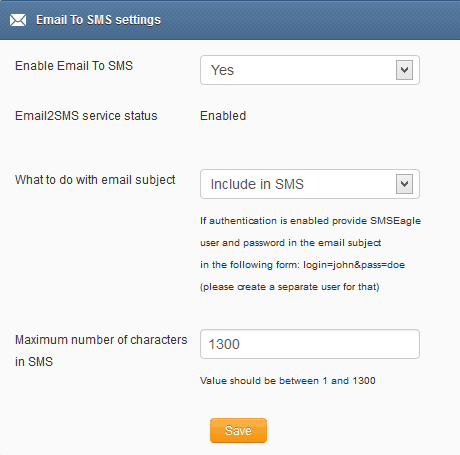

This integration will use Email To SMS plugin (see details: Email To SMS plugin). This plugin is included in each version of SMSEagle device.
1. First you need to have your SMTP server configured and running.

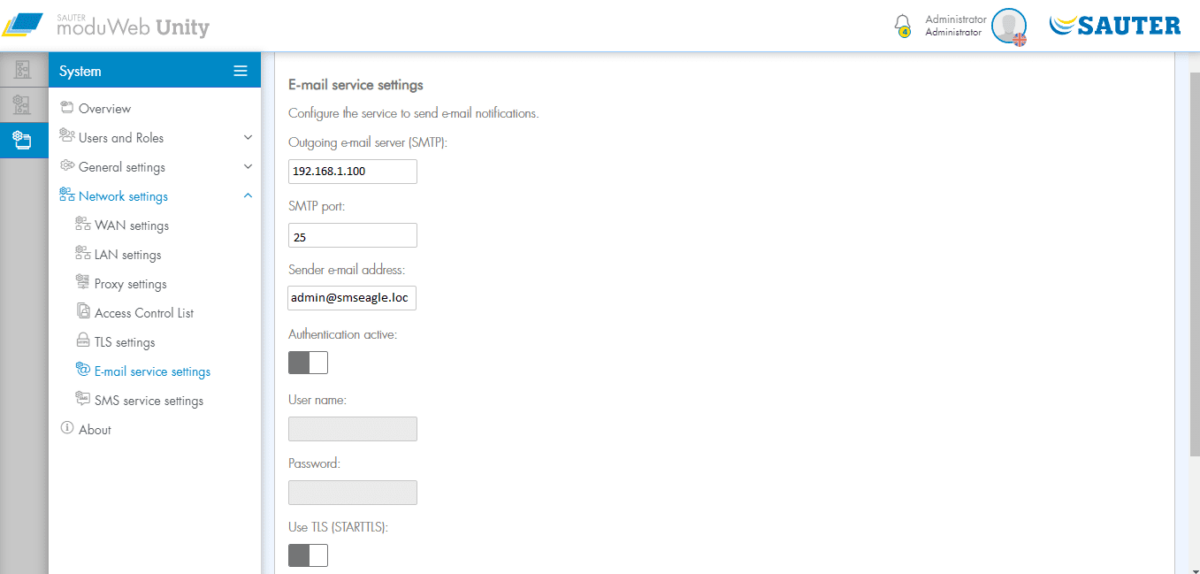

2. Configure SMTP server settings in Sauter moduWeb Unity ( System -> Network Settings -> Email service settings) as described at screenshot:
3. (Optional) – use SMSEagle as SMTP server

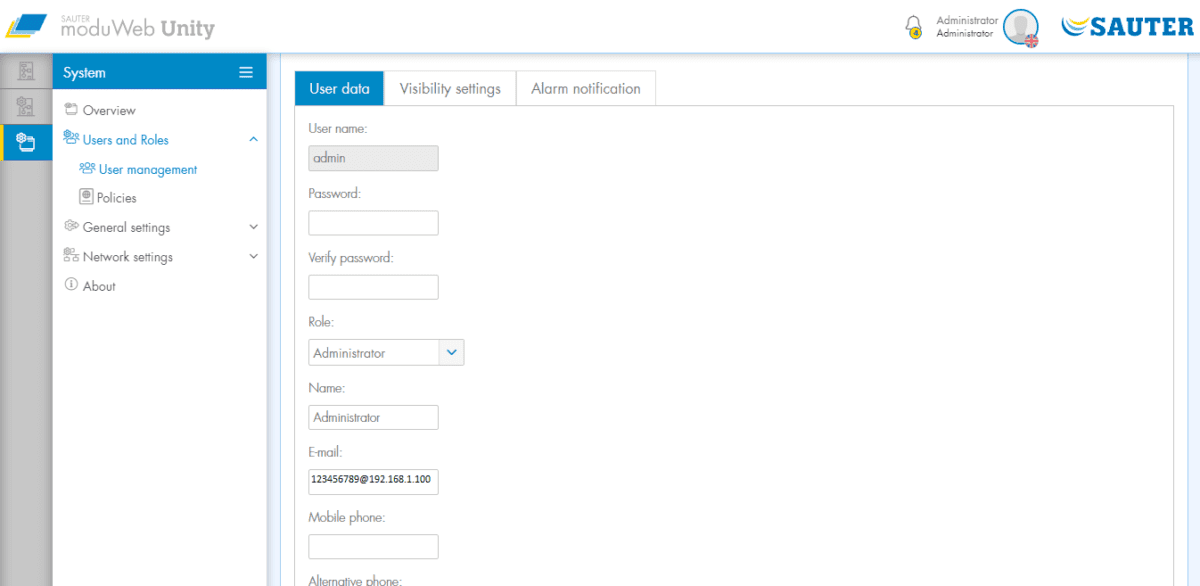

4. Configure E-mail recipients (System -> Users and roles -> User Management -> User data). Settings as at picture:
where :
5. Test if its working by going to (System -> Users and roles -> User Management -> User data) and clicking on ‘Send test email’. You should see results in:
6. Integration has been completed. That’s so easy!
SMSEagle has a voice feature that offers wake-up calls for urgent ring-only alerts or text-to-speech calls to convert text alerts into voice calls. Complete the following steps if you want to add a follow-up voice call:
