3CX SMS messaging – integration manual
Here we describe how to setup 3CX with SMSEagle device for SMS/MMS messaging support. The integration process is easy and should take 10-15 minutes to complete.
SMSEagle is an offline hardware SMS gateway. Therefore no external connection to 3rd party system is required. All notifications are generated on-premise and sent directly to a cellular network. This solution can be used in secure installations without Internet access.
SMSEagle Setup
- Create a new user in SMSEagle (menu Users > + Add Users, user access level: “User”).
- Grant API access to the created user:
- click Access to API beside the newly created user.
- Enable APIv2
- Generate new token (copy it and paste it on API Key field on the trunk where the number resides)
- Add access permissions in section 3CX Permission for: Forward a message from 3CX system.
- Save settings.
- On menu go to Callback URL and click add new rule:
-
-
- Add a rule name e.g. 3CX System.
- Under URL field paste the 3CX webhook URL generated from 3CX Setup
- The URL Method chose: POST (3CX)
- On the To(3CX) put the number that the messages will be terminated to as per 3CX config
- And save.
-
3CX Setup

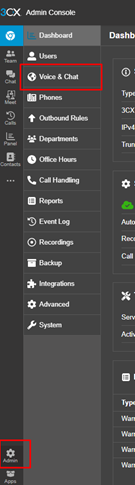

1. Connect to Management console.
![SMSEagle-3CXPicture1](https://www.smseagle.eu/wpsite/wp-content/uploads/2023/12/Picture1.png)

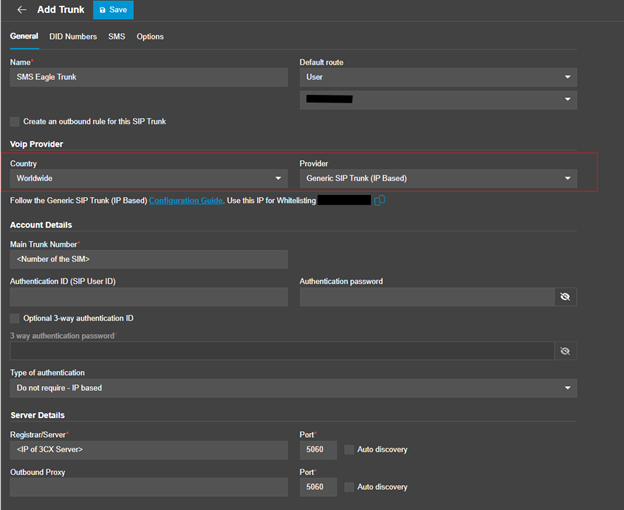

2. Go to SIP Trunks and create a generic sip trunk with the number that you will be using.
![SMSEagle-3CXPicture2](https://www.smseagle.eu/wpsite/wp-content/uploads/2023/12/Picture2.png)

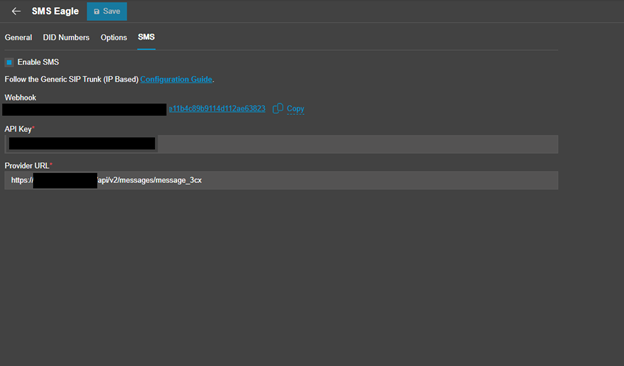

3. Under SMS section there are the needed fields like API key(that we will generate from SMSEagle), Provider URL( is the https endpoint of API SMSEagle, NOTE:HTTP is not supported for 3CX) and the 3CX Webhook(this webhook will be added to SMSEagle config for terminating SMS)
![SMSEagle-3CXPicture3](https://www.smseagle.eu/wpsite/wp-content/uploads/2023/12/Picture3.png)
Test it and enjoy 😊
