Cryptshare SMS notifications – integration manual

Here we describe how to setup Cryptshare with SMSEagle Hardware SMS Gateway for SMS notifications and passwords from Cryptshare. The setup is easy and should take 5-10 min. to complete.

SMSEagle is an offline hardware SMS gateway. Therefore no external connection to 3rd party system is required. All notifications are generated on-premise and sent directly to a cellular network. This solution can be used in secure installations without Internet access.

SMSEagle Setup

Cryptshare uses HTTPS API requests (see details: API).

  • Create a new user in SMSEagle (menu Users > + Add Users, user access level: “User”).
  • Grant API access to the created user:
    • click Access to API beside the newly created user
    • Enable APIv1
    • Generate new token (copy it for later use)
    • Add access permissions in section APIv1 Permission for: send_sms, send_tocontact, send_togroup
    • Save settings

Cryptshare Setup

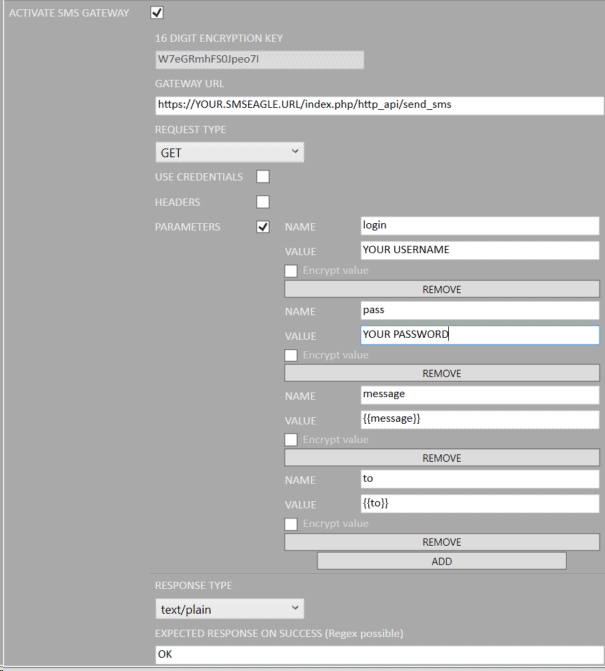

There’s a configuration file (CS4OutlookUserConfig.xml) that you need to configure to make use of the SMSEagle, Below you can see an example:

1. Set Gateway URL parameter to:
https://YOUR.SMSEAGLE.URL/index.php/http_api/send_sms
(where YOUR.SMSEAGLE.URL is actual SMSEagle IP address)

2. Set Request Type: GET

3. In the Parameters section add following parameters:

Parameter name Parameter value
login your API user to login to SMSEagle
pass your API password to login to SMSEagle
to {{phone}}
message {{message}}

Some usefull links from Cryptshare wiki:

SMS Gateway information
SMS Gateway configuration examples
